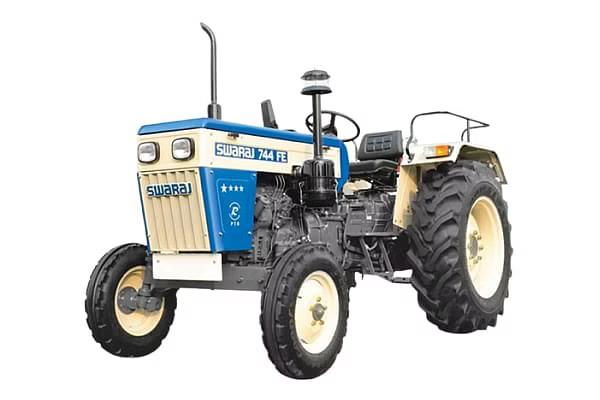

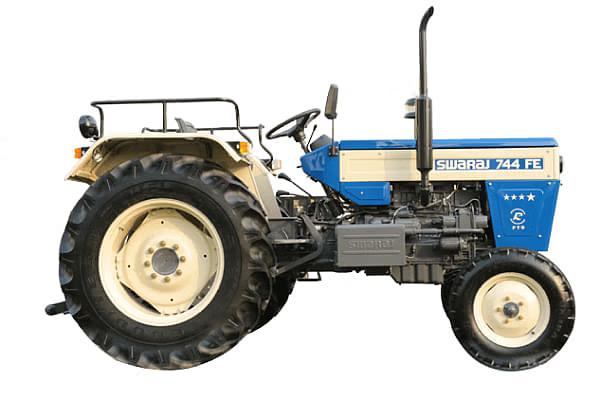

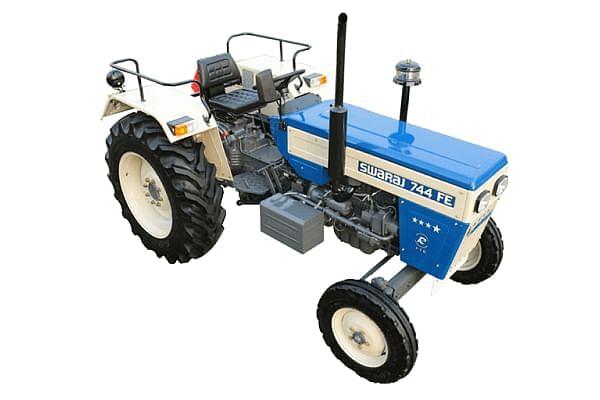

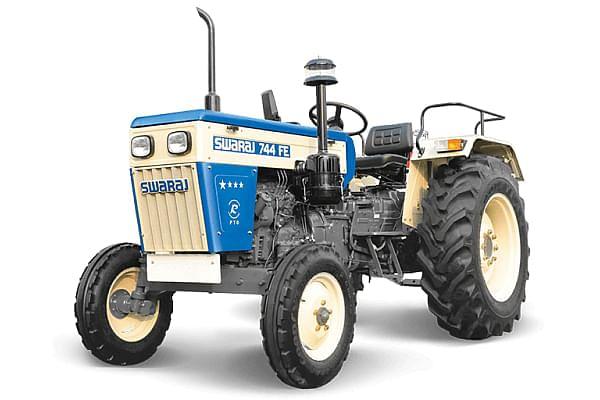

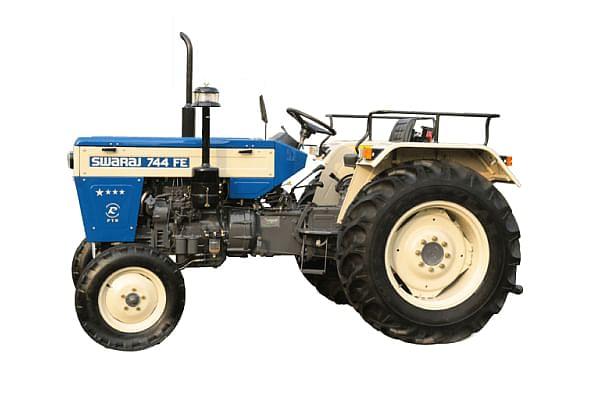

Swaraj 744 FE

Swaraj 744 FE Detailed Overview

• Price, Variants and Colours

  he Swaraj 744 XE is available in a single shade of blue with off-white, which is available for the single variant in which it is offered. The prices for the Swaraj 744 FE start at Rs 6.90 lakh.

  Summary

  The only variant in which Swaraj 744 FE is available is priced at Rs 6.90 lakh, with it available only in the dual-tone shade of blue and white.

• Engine and Performance

  The Swaraj 744 FE is powered by an RB-30 TR series engine. This three-cylinder diesel engine displaces 3136cc and produces a maximum power output of 48 hp. This direct injection diesel engine has an identical bore and stroke ratio of 110 mm and 110 mm. This engine comes equipped with a three-stage oil bath type air cleaner and features a water cooling system with no loss tank. The engine here is coupled to a transmission unit, which consists of 8 forward and 2 reverse gears. The clutch unit on duty is a standard single-dry disc friction plate, which measures 305mm in diameter, however, there is an option of a dual-clutch.

  Summary

  The 3134cc three-cylinder engine of the Swaraj 744 FE is paired to a transmission unit comprising 8 forward and 2 reverse gears, and is capable of producing 48 hp of maximum power.

• Other mechanical specifications

  The Swaraj 744 FE comes equipped with live hydraulics for holding lower links at desired heights, maintaining uniform depth and optimum field output. The lifting capacity of the Swaraj 744 FE is 1700 kg, while it rides on 6.00x16 front tyres and 13.6x28 rear tyres. The tractor measures 3440mm long, 1730mm wide and 2275mm tall, while having a wheelbase of 1950mm and a ground clearance of 400mm.

  Summary

  Riding on 6.00x16 front and 13.6x28 rear tyres, the Swaraj 744 FE features live hydraulics set-up and has a lifting capacity of 1700 kg.

• Features

  The Swaraj 744 FE has a PTO operating at a standard speed of 1000 rpm/min, however, it can operate at 540 rpm/min. The Swaraj 744 FE also comes with power steering as an optional feature and has a direction control valve for ease of operation for operating external hydraulic implements. The front axle of the Swaraj 744 FE is adjustable, as its front track is easily adjustable for inter-cultivation purposes. The brakes of the Swaraj 744 FE are oil immersed, which claim lesser maintenance and a longer life span.

  Summary

  The main highlight of the Swaraj 744 FE is its directional control valve, which is perfect for external hydraulic implements.
